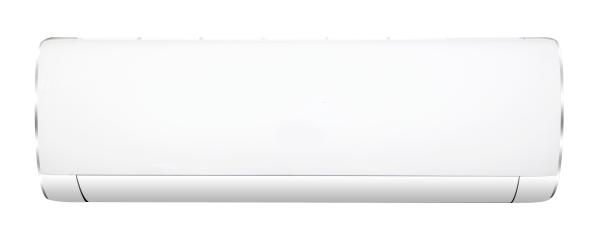

50HZ 220V Wall Mounted AC Unit R410a/R22 18000BTU Cooling Only QA
Panel
QA Panel 50HZ 220V R410a/R22 18000BTU Cooling Only High Quality
Wifi Control PCB 3 Year Warranty
① The startup of the inverter air conditioner is a soft start, no
inrush current, and no waste of electricity.
② When the inverter air conditioner is in operation, the high
frequency operation temperature rises first. When the room
temperature reaches the set temperature of the air conditioner, the
air conditioner becomes low frequency operation and keeps warm
without shutting down. The power consumption of continuous
low-frequency operation is only one-third or even one-fourth of the
rated power. The same goes for refrigeration.
③ Inverter air conditioners do not have electric auxiliary heating
elements that consume a lot of electricity.
To sum up, the continuous low-frequency operation of inverter air
conditioners has neither frequent start-up inrush current nor
long-term high-power operation like fixed-speed air conditioners,
and there is no electric auxiliary heating element that consumes
electricity. Therefore, inverter air conditioners are better than
fixed-speed air conditioners. Speed air-conditioning saves energy
and electricity.
| | | 18000BTU |
| Model No. | TAC-18CS/Z |
| KF-48GW |
| indoor 860(Φ7×2)+outdoor 780(Φ7.94×2) |
| Type | cooling only |
| Control type | |
| Rated cooling capacity | Btu/h;W | 15695;4600 |
| Rated heating capacity | Btu/h;W | N.A |
| EER for cooling | Btu/h.w; W/W | 2.4 |
| COP for heating | W/W | N.A |
| Moisture removal | Liters/h | 1.99 |
| Pressure | High(DP) | MPa | 2.6 |
| Low(SP) | MPa | 1 |
| Indoor noise level at cooling | High | dB(A) | 43 |
| Med. | dB(A) | 39 |
| Low | dB(A) | 33 |
| Outdoor noise level | dB(A) | 58 |
| | | |
| Power supply | |
| Voltage Range | V | 198~242 |
| Rated current | Cooling | A | 9.1 |
| Heating | A | N.A |
| Rated input | Cooling | W | 1899 |
| Heating | W | N.A |
| Annual energy consumption | kwh (cooling) | |
| Max Current | Cooling | A | 13.5 |
| Heating | A | N.A |
| Max Power input | Cooling | W | 2472 |
| Heating | W | N.A |
| | | |
| Refrigerant/Charge | Gram | R410A/R22 |
| Compressor | Type | Rotary |
| Model | 配凌达QX-D336F030 |
| LRA | A | / |
| MFG | GREE |
| | | |
| Indoor air circulation(Cooling/Heating) | m3/h | 800 |
| Indoor fan type | Cross flow |
| Indoor fan speed H/M/L | Cooling | rpm | 1300/1140/980 |
| Heating | rpm | N.A |
| Dry | rpm | 980 |
| Sleep | rpm | 980 |
| Indoor fan motor output | W | 18 |
| Outdoor fan type | Propeller |
| Outdoor fan speed | rpm | 850 |
| Outdoor fan motor output | W | 45 |
| | | |
| Connecting Pipe | Gas | mm | Φ12 |
| Liquid | mm | Φ6 |
| Connecting Wiring | Size x Core number | 5*1.5 |
| Drainage Pipe | |
| | | |
| Suitable area | m2 | 20~30 |
| Net dimensions (W x H x D) | Indoor | mm | 860x290x203 |
| Outdoor | mm | 820*600*300 |
| Net weight | Indoor | kg | 12 |
| Outdoor | kg | 37 |
| Packing dimensions (W x H x D) | Indoor | mm | 940*267*355 |
| Outdoor | mm | 920*405*645 |
| Gross weight | Indoor | kg | 15.5 |
| Outdoor | kg | 41/42 |
