50hz 220V 9000Btu Wall Inverter Air Conditioner For Bedroom House
YC Panel R410A Wall Inverter 50hz 220V 9000Btu DC Air Conditioner
Cooling Heating Wifi Control PCB 3 Year Warranty
Maintenance before starting up
Generally, household air conditioners are turned off in September
and then turned on from May to June of the following year. They
will not be used for more than half a year. Therefore, a
comprehensive "diagnosis" must be done before the air conditioner
is turned on to check whether the air conditioner is "faulty".
According to the results of the inventory, under the guidance of
professional and technical personnel, do a good job of maintenance
and cleaning. This time, the maintenance and cleaning should be
more in place. Including the casing, body, and filter of the
outdoor unit and the indoor unit, and then start trial operation to
observe the cooling speed and effect.
cleaning method
The cleaning of the air conditioner should include three parts:
First, the casing and exposed parts of the air conditioner body,
which are easily contaminated parts;
Second, filter cleaning is the most important part of the core;
Third, the condenser and evaporator part
| INVTER | 9K |
| 825X(φ7×1)+700φ7×1) |
| Type | Cooling only |

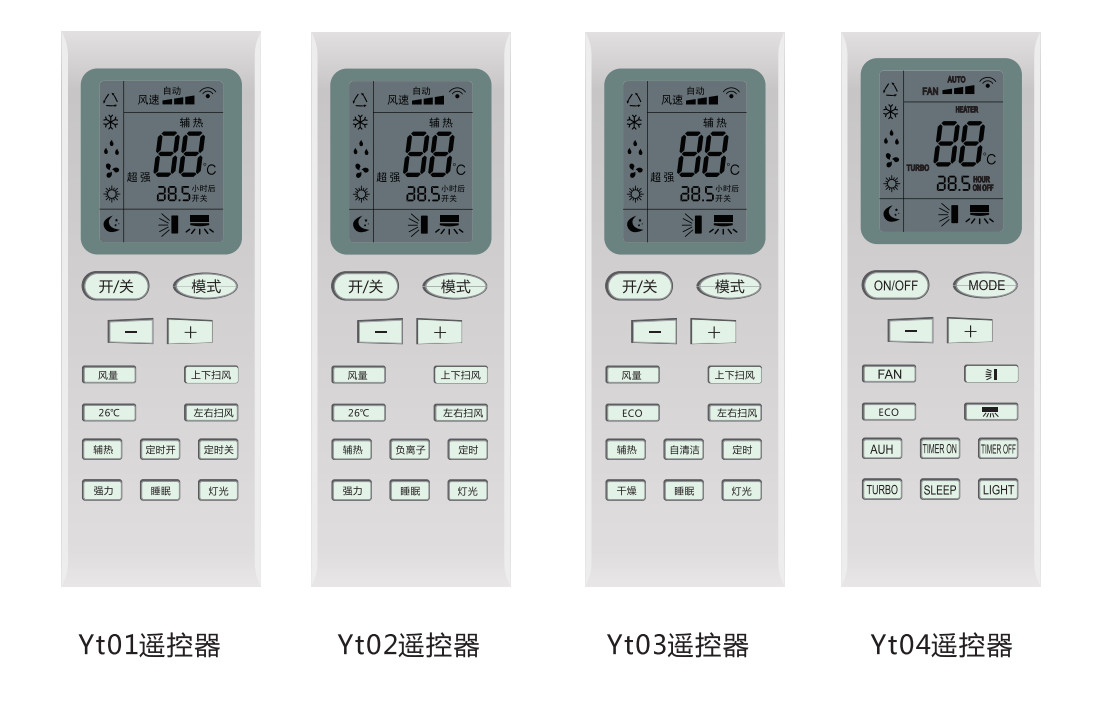

| Control type | remote |
| Rated cooling capacity | Btu/h | 8871 |
| W | 2600 |
| Rated heating capacity | Btu/h | / |
| W | / |
| EER for cooling | W/W | 3.2 |
| COP for heating | W/W | / |
| Moisture removal | Liters/h | 1 |
| Pressure | High(DP) | MPa | 4.5 |
| Low(SP) | MPa | 1.9 |
| Indoor noise level at cooling | SUPER | dB(A) | / |
| High | dB(A) | 41 |
| Med | dB(A) | 39 |
| Low | dB(A) | 37 |
| MUTE | dB(A) | / |
| Outdoor noise level | dB(A) | 51 |
| Electrical Data | |
| Power supply | 220-240V/50Hz |
| Voltage Range | V | 187~264 |
| Rated current | Cooling | A | 5.3 |
| Heating | A | / |
| Rated input | Cooling | W | 1175 |
| Heating | W | / |
| | |
| Max Current | Cooling | A | 13 |
| Heating | A | / |
| Max Power input | Cooling | W | 2750 |
| Heating | W | / |
| Refrigerating System | |
| Refrigerant/Charge | Gram | R410A/420g |
| Compressor | Model | KSK103D53UFZ |
| MFG | | GMCC |
| Type | Rotary |
| Connections | |
| Connecting Pipe | Gas | Inches | Φ9.52(3/8'') |
| Liquid | Inches | Φ6(1/4'') |
| Connecting Wiring | Size x Core number | 1.5*5 |
| Drainage Pipe | O.D 16mm |
| Others | |
| Suitable area | m2 | |
| Net dimensions (W x H x D) | Indoor | mm | 825*290*195 |
| Outdoor | mm | 700*540*255 |
| Net weight | Indoor | kg | 9 |
| Outdoor | kg | 31 |
| Packing dimensions (W x H x D) | Indoor | mm | 885×359×276 |
| Outdoor | mm | 815×350×600 |
| Gross weight) | Indoor | kg | 8.5 |
| Outdoor | kg | 27 |
| | | |
① The startup of the inverter air conditioner is a soft start, no
inrush current, and no waste of electricity.
② When the inverter air conditioner is in operation, the high
frequency operation temperature rises first. When the room
temperature reaches the set temperature of the air conditioner, the
air conditioner becomes low frequency operation and keeps warm
without shutting down. The power consumption of continuous
low-frequency operation is only one-third or even one-fourth of the
rated power. The same goes for refrigeration.
③ Inverter air conditioners do not have electric auxiliary heating
elements that consume a lot of electricity.
To sum up, the continuous low-frequency operation of inverter air
conditioners has neither frequent start-up inrush current nor
long-term high-power operation like fixed-speed air conditioners,
and there is no electric auxiliary heating element that consumes
electricity. Therefore, inverter air conditioners are better than
fixed-speed air conditioners. Speed air-conditioning saves energy
and electricity.
