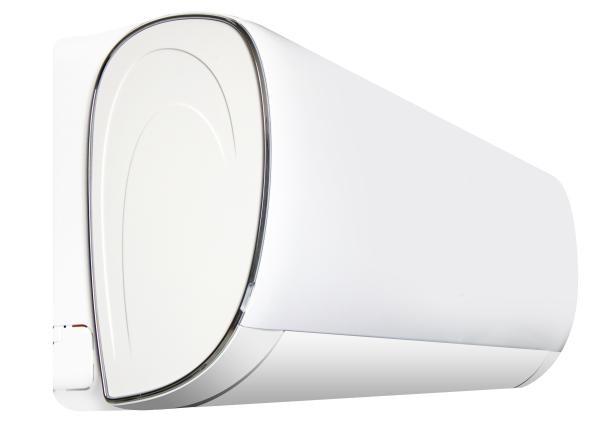

    Cooling Onlying Wall Mounted AC Unit 9000 Btu Air Conditioner 50HZ 220V

    Ask Lasest Price
    Brand Name : YUETU or OEM
    Model Number : 9000BTU
    Certification : CE/BC
    Price : $100
    Payment Terms : L/C, , T/T, D/A
    Supply Ability : 100000pcs/month
    Delivery Time : 35 work days after receipt of the deposit
    • Product Details
    • Company Profile

    Cooling Onlying Wall Mounted AC Unit 9000 Btu Air Conditioner 50HZ 220V

    Cooling Onlying Wall Mounted AC Unit 9000 Btu Air Conditioner 50HZ 220V


    QA Panel 50HZ 220V R410a/R22 9000BTU Cooling Onlying High Quality Wifi Control PCB 3 Year Warranty


    Precautions

    - To adjust the temperature during sleep, the air conditioner can automatically adjust the sleep temperature

    - The outdoor unit must be installed firmly to reduce vibration and noise. There must be enough space in front of the suction and exhaust vents of the condenser for ventilation. If the wind is blocked, the condensation pressure will increase and it will cause shutdown;

    - There should be no obstacles in front of the indoor unit, otherwise the wind will be affected;

    When the air conditioner is running for rapid cooling, the selector switch can be adjusted to the high gear, and after the temperature drops, it can be adjusted to the medium-speed low gear;

    - The ventilation switch can be used for the ventilation of the window air conditioner, but the ventilation time should not exceed 15 minutes;

    - The outdoor unit of split type air conditioner cannot be inserted with sticks, otherwise the fan will be stuck or damaged


    9000BTU
    Model No.YTA-09C
    KF-26GW
    indoor 760(Φ7.94×1)+outdoor700(Φ7.94×1)
    Typecooling only
    Control type
    Rated cooling capacityBtu/h;W8048;2359
    Rated heating capacityBtu/h;WN.A
    EER for coolingBtu/h.w; W/W2.48
    COP for heatingW/WN.A
    Moisture removalLiters/h0.78
    PressureHigh(DP)MPa2.8
    Low(SP)MPa1.2
    Indoor noise level at coolingHighdB(A)39
    Med.dB(A)34
    LowdB(A)22
    Outdoor noise leveldB(A)49
    Power supply
    Voltage RangeV198~242
    Rated currentCoolingA4.4
    HeatingAN.A
    Rated inputCoolingW947
    HeatingWN.A
    Annual energy consumptionkwh (cooling)
    Max CurrentCoolingA7.09
    HeatingAN.A
    Max Power inputCoolingW1337
    HeatingWN.A
    Refrigerant/ChargeGramR410A/R22
    CompressorTypeRotary
    Model凌达QX-B160C130
    LRAA/
    MFGGREE
    Indoor air circulation(Cooling/Heating)m3/h430
    Indoor fan typeCross Flow
    Indoor fan speed H/M/LCoolingrpm1160/1060/900
    HeatingrpmN.A
    Dryrpm900
    Sleeprpm900
    Indoor fan motor outputW8
    Outdoor fan typePropeller
    Outdoor fan speedrpm850
    Outdoor fan motor outputW30
    Connecting PipeGasmmΦ9
    LiquidmmΦ6
    Connecting WiringSize x Core number5*0.75
    Drainage Pipe
    Suitable aream28~12
    Net dimensions (W x H x D)Indoormm760*299*190
    Outdoormm700x540x255
    Net weightIndoorkg8.5
    Outdoorkg28
    Packing dimensions (W x H x D)Indoormm840*279*325
    Outdoormm815*350*600
    Gross weightIndoorkg10
    Outdoorkg34

    cleaning method

    The cleaning of the air conditioner should include three parts:

    First, the casing and exposed parts of the air conditioner body, which are easily contaminated parts;

    Second, filter cleaning is the most important part of the core;

    Third, the condenser and evaporator part
