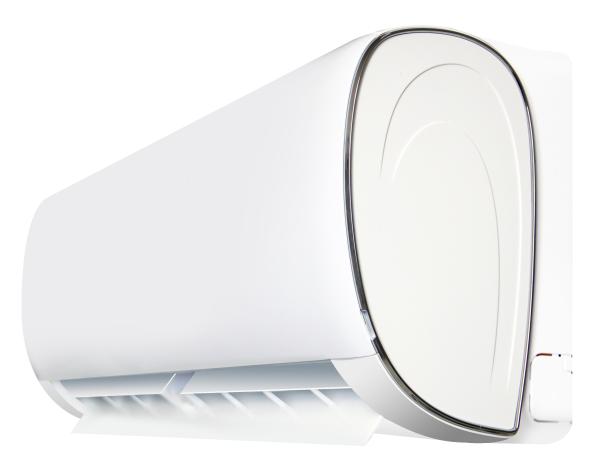

QA Panel 50HZ 220V Wall Mounted Aircon R410a R22 12000BTU Cooling
Only
QA Panel 50HZ 220V R410a/R22 12000BTU Cooling Onlying High Quality
Wifi Control PCB 3 Year Warranty
Generally, it includes cold source/heat source equipment, cold and
hot medium transmission and distribution system, terminal equipment
and other auxiliary equipment. It mainly includes refrigeration
host, water pump, fan and piping system. The terminal device is
responsible for using the cold and heat from the transmission and
distribution to specifically process the air condition so that the
air parameters of the target environment meet certain requirements.
| | | 12000BTU |
| Model No. | TAC-12CS/Z |
| KF-35GW |
| indoor 820(Φ7×2)+outdoor 780(Φ7.94×1) |
| Type | cooling only |
| Control type | |
| Rated cooling capacity | Btu/h;W | 11535;3381 |
| Rated heating capacity | Btu/h;W | N.A |
| EER for cooling | Btu/h.w; W/W | 2.7 |
| COP for heating | W/W | N.A |
| Moisture removal | Liters/h | 1.3 |
| Pressure | High(DP) | MPa | 2.6 |
| Low(SP) | MPa | 1 |
| Indoor noise level at cooling | High | dB(A) | 41 |
| Med. | dB(A) | 37 |
| Low | dB(A) | 24 |
| Outdoor noise level | dB(A) | 52 |
| | | |
| Power supply | |
| Voltage Range | V | 198~242 |
| Rated current | Cooling | A | 5.8 |
| Heating | A | N.A |
| Rated input | Cooling | W | 1253 |
| Heating | W | N.A |
| Annual energy consumption | kwh (cooling) | |
| Max Current | Cooling | A | 9.8 |
| Heating | A | N.A |
| Max Power input | Cooling | W | 1790 |
| Heating | W | N.A |
| | | |
| Refrigerant/Charge | Gram | R410A/R22 |
| Compressor | Type | Rotary |
| Model | 三洋C-RV212H92CB/凌达QX-B217E030A |
| LRA | A | / |
| MFG | SANYO/GREE |
| | | |
| Indoor air circulation(Cooling/Heating) | m3/h | 530 |
| Indoor fan type | Cross Flow |
| Indoor fan speed H/M/L | Cooling | rpm | 1290/1150/900 |
| Heating | rpm | N.A |
| Dry | rpm | 900 |
| Sleep | rpm | 900 |
| Indoor fan motor output | W | 13 |
| Outdoor fan type | Propeller |
| Outdoor fan speed | rpm | 850 |
| Outdoor fan motor output | W | 30 |
| | | |
| Connecting Pipe | Gas | mm | Φ12 |
| Liquid | mm | Φ6 |
| Connecting Wiring | Size x Core number | 1.0*3 |
| Drainage Pipe | |
| | | |
| Suitable area | m2 | 12~23 |
| Net dimensions (W x H x D) | Indoor | mm | 820x250x205 |
| Outdoor | mm | 780x540x255 |
| Net weight | Indoor | kg | 10 |
| Outdoor | kg | 31 |
| Packing dimensions (W x H x D) | Indoor | mm | 890*279*325 |
| Outdoor | mm | 870*340*590 |
| Gross weight | Indoor | kg | 12.5 |
| Outdoor | kg | 37 |
The structure of the air conditioner includes: compressor,
condenser, evaporator, four-way valve, one-way valve capillary
assembly, etc.
Dehumidification
The air conditioner is accompanied by dehumidification during the
refrigeration process. The relative humidity of the environment
that people feel comfortable should be around 40-60%. When the
relative humidity is too high, such as above 90%, even if the
temperature is within a comfortable range, people still feel bad.
Purifying air
The air contains a certain amount of harmful gases such as NH3,
SO2, etc., as well as various odors such as sweat, body odor and
bathroom odor.
Purification methods for air conditioners include: changing fresh
air, filtering, and using activated carbon or photocatalyst to
absorb and absorb.
